SmartFill is a trusted Indian manufacturer of precision weighing systems, with a fully integrated manufacturing facility in Ahmedabad, Gujarat.

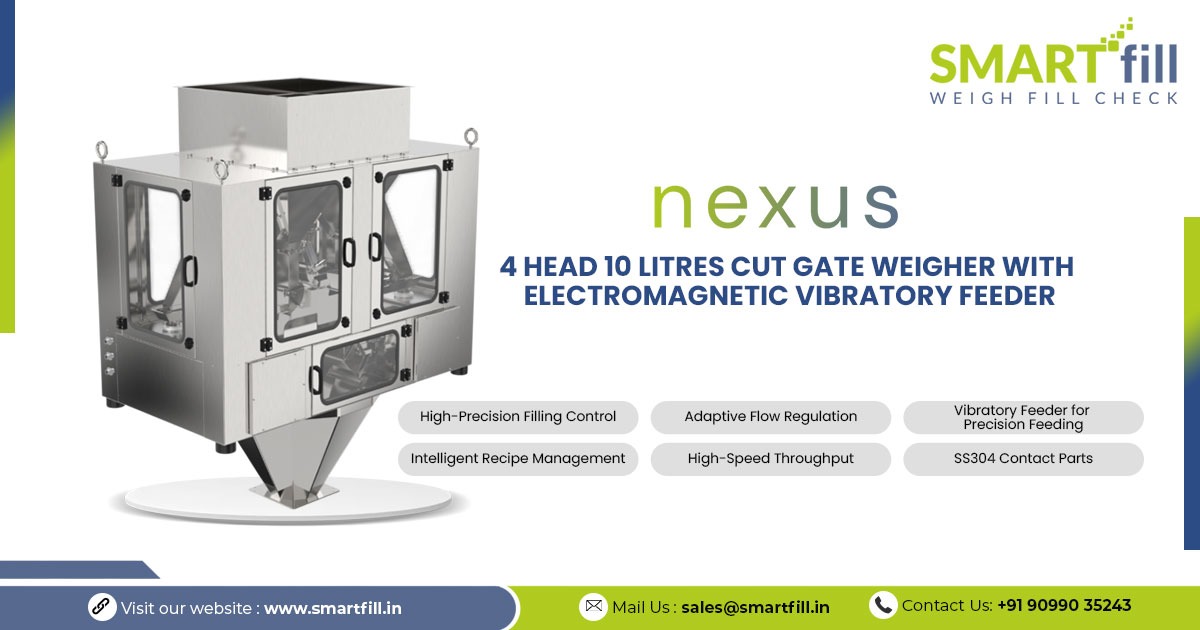

The Nexus 4 Head 10L Cut-Gate Weigher is engineered for high-speed, accurate bulk weighing of granular and free-flowing materials, delivering consistent performance across diverse applications.
How It Works
The Nexus system combines gravity-based coarse feeding with electromagnetic vibratory fine feeding to achieve both speed and accuracy.
In the first stage, material is discharged rapidly through a pneumatic cut-gate (coarse feed) to approach the target weight quickly. As the weight nears the set value, the system switches to an electromagnetic vibratory feeder (fine feed), which gently and precisely tops up the remaining weight.
Benefits of Dual-Stage Feeding
- Faster cycle times
- Reduced product spillage
- Lower giveaway
- Better control over irregular or difficult-flow materials
The integration of high-sensitivity load cells and real-time signal processing ensures stable and repeatable weighments even in dynamic production environments.
Features
High-Precision Combination Weighing
Advanced load cell feedback ensures consistent accuracy across varying densities.
Dual-Stage Feeding System
Cut-gate for bulk flow combined with a vibratory feeder for fine control.
Optimized Product Flow
Handles materials prone to bridging, compaction, or inconsistent discharge.
Smart HMI & Recipe Management
10-inch touchscreen interface with up to 20 preset programs.
High-Speed Performance
Achieves up to 50 bags per minute (product dependent).
Technical Specifications
Weighing Range: 2 kg – 5 kg
Accuracy: ±10–20 g
Feeding Hopper Volume: 158 Litres
Power Supply: AC 230V ±10%
Control System: Embedded
Construction: SS-304 contact parts (SS316 available on request)
Air Requirement: 5 Bar / 3.5 CFM
Applications
Food Industry
Food grains such as rice, pulses, and seeds
Processed Foods
Dried and dehydrated food products
Chemical Industry
Chemicals and agro inputs
Animal Feed
Pet food and feed materials
Industrial Use
Detergents and industrial granules
Why Nexus?
The Nexus series bridges the gap between traditional bulk weighers and advanced feed combination systems by offering higher speed with controlled accuracy. It is particularly suited for applications where both throughput and precision are equally critical.
